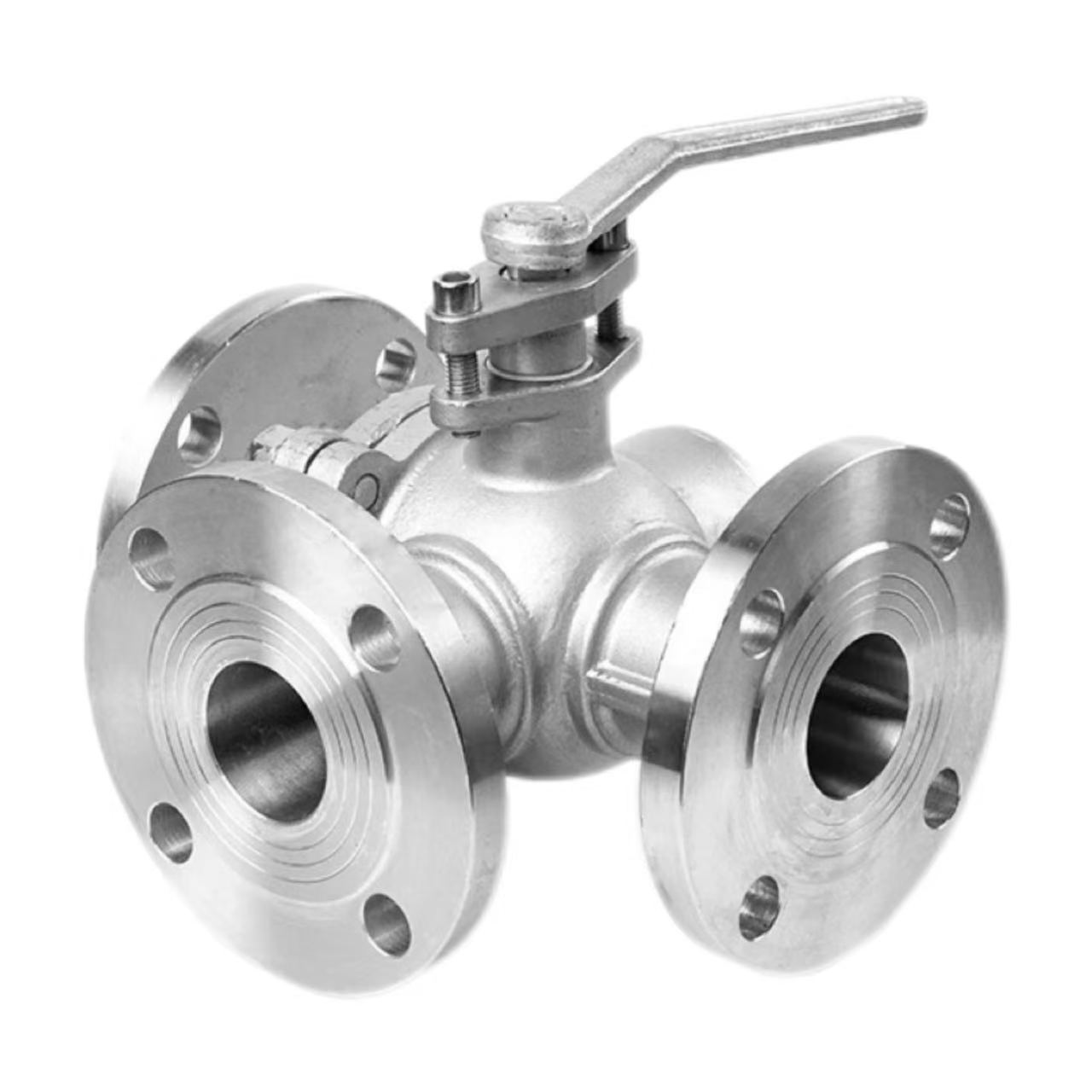

Bawul ɗin ƙwallon ƙafa ta hanya uku

Ƙa'idar Aiki

Ka'idar aiki na Shenchi factory's lalata-resistant flange ball bawul ta dogara ne a kan L-dimbin yawa tashoshi ko T-siffa da yanke a cikin ball. Ana sanya ƙwallon a tsakiyar jikin bawul kuma ana jujjuya shi ta hannu. Lokacin da ƙwallon ya juya, tashoshi suna daidaitawa tare da ko kashewa daga tashoshin bawul daban-daban, suna fahimtar sauyawa, haɗawa, ko rarrabuwa na matsakaicin kwarara.

Ball mai siffar L:

 Juyawa 90° yana bawa matsakaici damar canzawa daga mashigarwa zuwa kowane mashigar, dacewa don juyar da al'amura tare da mashigai guda ɗaya da kantuna biyu ko mashigai biyu da kuma mashigar guda ɗaya, kamar mai canza ruwa zuwa reactors guda biyu.

Ball mai siffar T:

Juyawa 180° yana ba da damar haɗa dukkan tashoshin jiragen ruwa guda uku a lokaci guda ko kowane tashar jiragen ruwa guda biyu don haɗa juna, dacewa don haɗa hanyoyin sadarwa guda biyu sannan fitarwa (haɗewa), ko raba kafofin watsa labarai guda ɗaya zuwa fitarwa guda biyu (ragawa), kamar a cikin iska mai zafi da tsarin hada-hadar ruwan sanyi.

Ma'aunin Samfura:

Sunan samfur: Ƙwallon Ƙwallon Ƙwallon Ƙwallon Ƙirar Hanyoyi uku	Bayanan Bayani: (1/8"-4") DN6-DN100
Matsin lamba: PN16	Kayan Jiki: WCB, SUS304 (CF8), SUS316L (CF3M)
Ma'auni: ANSI, BS, DIN, ISO, JIS	Zazzabi mai dacewa: -20 ℃ ~ +150 ℃ (misali), har zuwa +350 ℃ (high zafin jiki), ƙasa zuwa -196 ℃ (ƙananan zafin jiki)
Abun ƙarfe na ciki: WCB, SUS304 (CF8), SUS316L (CF3M)	Matsakaicin Zazzabi: Babban zafin jiki, ƙananan zafin jiki, matsakaicin zafin jiki, zazzabi na al'ada
Hanyar Aiki: Manual	Tambayoyi: EPDM, PPL
Hanyar haɗi: Haɗin flange	Aikace-aikace: Ruwa, iska, gas, mai, ruwa, da dai sauransu.
Asalin: China	Misali: Samfuran akwai

Amfanin Haɗin Flange:

Shenchi 3-hanyar flanged ball bawul suna amfani da haɗin flange. Idan aka kwatanta da haɗin da aka haɗa, haɗin flange yana ba da juriya mai girma; da PN16 rating iya stably jure 1.6MPa matsa lamba. Ragewa ya dace, yana sauƙaƙe duba bututun yau da kullun da kiyayewa. An tabbatar da abin dogara; gaskat ɗin flange da kusoshi suna aiki tare don kawar da haɗarin yabo. Ya dace da manyan bututun diamita; don diamita sama da DN50, inda haɗin zaren ke da wahala, flanges sune daidaitaccen zaɓi. Shenchi, mai ƙera ƙwallon ƙwallon ƙwallon ƙwallon ƙafa ta 3 na kasar Sin, yana ba da flanges masu dacewa da ka'idodin ANSI, BS, DIN, da JIS, suna biyan bukatun abokan ciniki na duniya.

Maɓallin Shigarwa 1: Daidaita Flange

Daidaita Flange Lokacin shigar da bawul ɗin ƙwallon flange mai hanya uku na Shenchi, dole ne a daidaita fuskokin flange. Ya kamata flanges guda biyu su kasance daidai da juna kuma suna mai da hankali, tare da karkatar da ba ta wuce iyakar da aka yarda da gasket na flange ba. Tilasta juzu'in ƙulla zai haifar da nakasar jikin bawul, yana shafar jujjuyawar ƙwallon da aikin rufewa. Bayan daidaitawa, yakamata a sanya gasket a tsakiya kuma ba dole ba ne a kashe shi. Bawul ɗin ƙwallon ƙwallon ƙafa mai ƙarancin farashi uku ba ya daidaita da ƙarancin inganci; Kayayyakin Shenchi suna ba da madaidaicin inganci da sauƙin shigarwa. Lalata-resistant uku-hanya flange ball bawuloli da flange surface gama da cika ka'idoji, tabbatar da mafi abin dogara sealing.

Wurin Shigarwa Na Biyu: Tsantsan Bolt

Dole ne a ƙara maƙarƙashiya ƙwanƙwasa diagonally a matakai. Aiwatar da juzu'i a hankali cikin matakai 2-3, bin jeri na diagonal 180°. Kar a danne gefe daya gaba daya, in ba haka ba matsi mara daidaituwa akan gasket zai haifar da tashoshi masu yabo. Ƙwaƙwalwar Bolt dole ne ya dace da daidaitattun dabi'u; overtighting zai lalata flange ko kusoshi, yayin da undertighting zai haifar da rashin isa hatimi. Shenchi 3-hanyar flange ball bawul masana'anta samar da shawarar karfin juyi tebur don shigarwa don koma ga. Waɗannan wuraren shigarwa suna da mahimmanci don tabbatar da aikin bawul ɗin da ba shi da ɗigo na dogon lokaci; don Allah a bi ƙayyadaddun bayanai.

Wurin Shigarwa 3: Tallafin Bututu da Tsaftacewa

Kafin shigarwa, dole ne a tsaftace cikin bututun don cire walda, filayen ƙarfe, yashi, da sauran ƙazanta. Abubuwa na waje da ke shiga cikin rami na bawul na iya tashe ƙwallon ko hatimi, wanda zai haifar da zubewa. Dole ne a tallafawa bututun da kansa; bawul ɗin ba dole ba ne ya ɗauki nauyin bututun. Manyan-diamita tee flange ball bawuloli ne nauyi; Subsidence bututu na iya cire flange daga tsakiya, lalata hatimin. Lalata-resistant Te flange ball bawuloli an yi su da WCB, SUS304, ko SUS316L kayan, tare da jan karfe ko bakin karfe bawul core. Bayan kammala wuraren shigarwa, ya kamata rikewa ya juya kyauta ba tare da raguwa ba; bawul ɗin yana shirye don amfani.
