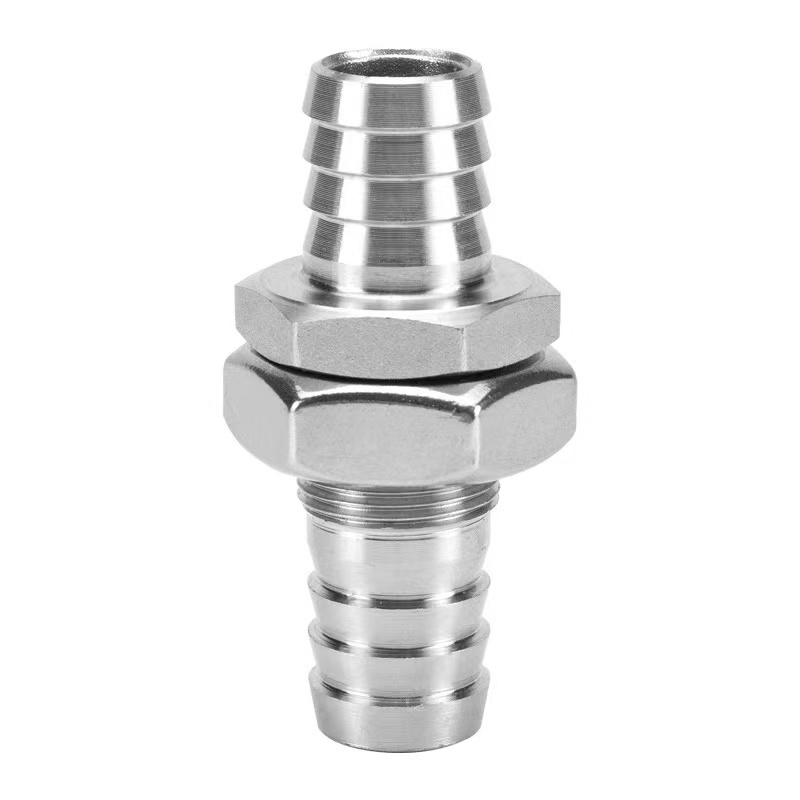

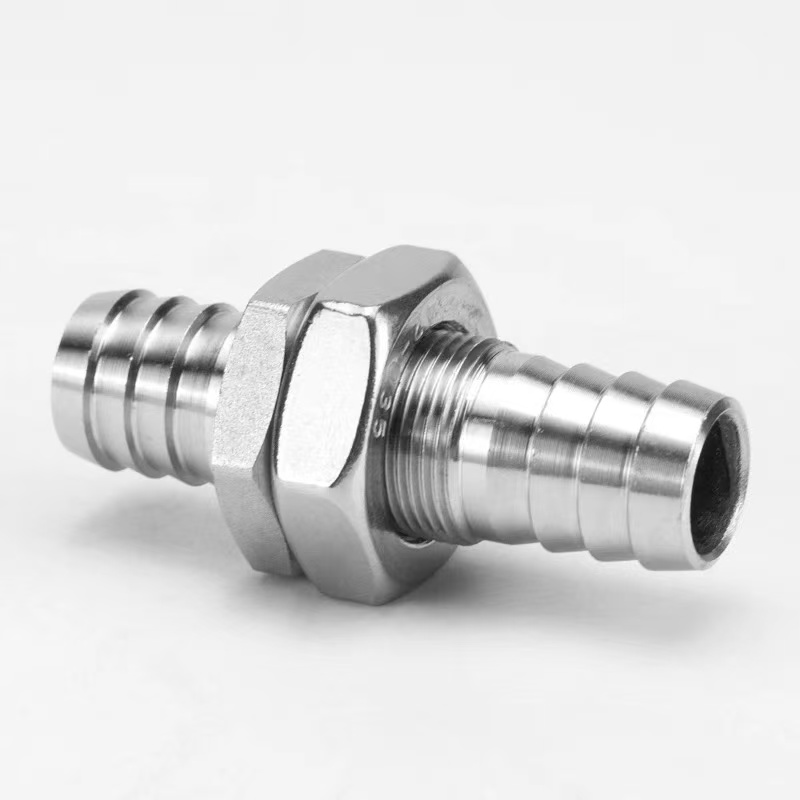

Bulkhead Barbed Fitting

Shenchi yana gabatar da manyan kayan aiki na Bulkhead Barbed Fittings, musamman an tsara shi don jigilar hoses ta bangarorin kayan aiki yayin samar da abin dogara. Anyi da tagulla, SUS304, da SUS316L bakin karfe, waɗannan kayan aikin suna ba da juriya mai ƙarfi kuma sun dace da yanayin aiki da yawa.

Tsarin Samfur

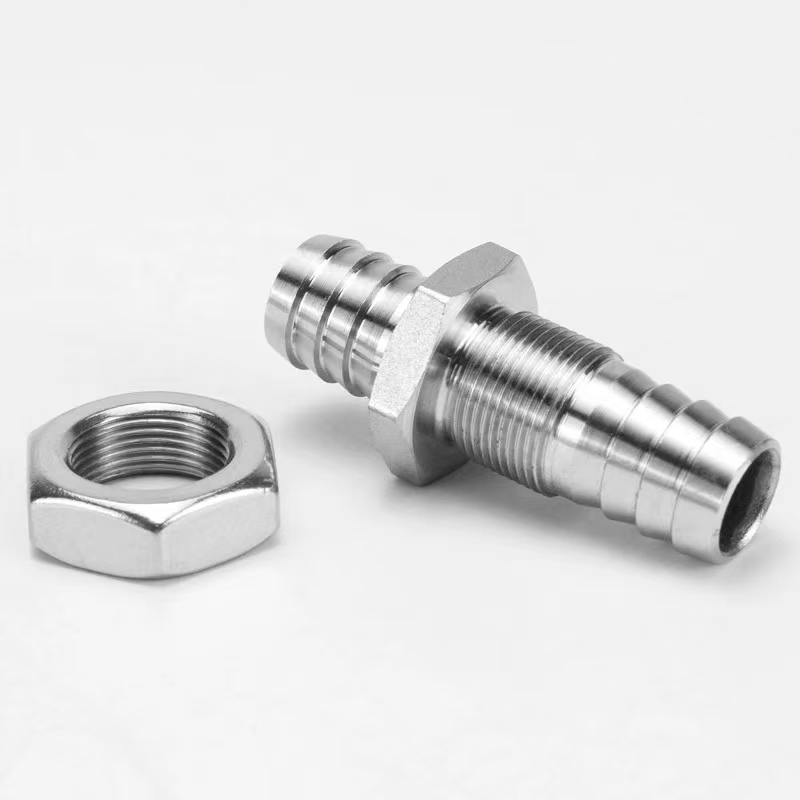

Tsarin Babban Barbed Fitting ɗin ya haɗa da zaren kan babba, ƙwaya mai kullewa, da haɗin igiya. A lokacin shigarwa, kawai ana buƙatar ramin panel; matsawa goro yana gama gyarawa da rufewa.

Ƙarshen ƙaƙƙarfan ƙaƙƙarfan ƙaƙƙarfan ƙirar tsagi mai hana zamewa, yana tabbatar da amintaccen haɗin gwiwa lokacin amfani da maƙarƙashiyar tiyo. Ana amfani da waɗannan kayan aikin a ko'ina a cikin kabad masu sarrafawa, kayan aikin kula da ruwa, kayan aikin likita, da sauran fannoni masu alaƙa.

Ƙayyadaddun samfur

Fa'idodin Tsari

The Bulkhead Barbed Fitting wani bututu ne wanda aka kera musamman don sarrafa hoses ta fanfuna na kayan aiki, shinge, ko manyan kantuna yayin samar da tsayayyen hatimi. Babban tsarinsa ya haɗa da ɓangaren zaren babba, goro mai kullewa, gaskat ɗin rufewa, da haɗin igiya. A lokacin shigarwa, kawai rami na daidaitaccen diamita yana buƙatar a yi a kan panel. Sashin zaren na dacewa yana wucewa ta cikin rami, kuma an ƙara goro daga gefen gaba don kammala aikin gyarawa da rufewa.

1. Tsarin Gyaran Babban Kan:Tsawon sashin zaren an daidaita shi zuwa kauri na gama gari. Da zarar an kulle goro, zai samar da tsayayyen gyare-gyare tare da panel, yana tabbatar da cewa abin da ya dace ya kasance amintacce ko da a ƙarƙashin ƙarfin ja na waje.

2. Haɗin Hose:Bangaskiya ɗaya ko biyu na rukunin suna da haƙoran haƙoran da aka ɗora don shigar da bututun da ƙirƙirar haɗin da aka rufe tare da matse bututun. Ƙarshen barbed ɗin yana ɗaukar ƙirar tsagi mai hana zamewa sau biyu, yana ba da juriya mafi girma fiye da kayan aiki na yau da kullun.

3. Tsarin rufewa:Ana ba da gaskets na roba ko zoben O-ring a bangarorin biyu na panel. Lokacin da aka ƙara goro, ana matsar da gasket ɗin rufewa, ana samun ruwa mai tsauri da ƙura a buɗe panel, tare da ƙimar kariya har zuwa IP65 ko sama.

Hanyar shigarwa

Shenchi's Dorewa Bulkhead Barbed Fittings suna da sauƙin shigarwa. Ana iya samun amintaccen haɗin haɗin gwiwa da hatimi a cikin matakai shida kawai:

Mataki 1: Shiri Hole Panel

Yi madaidaicin ramin zagaye a kan panel dangane da diamita na waje na sashin zaren. Tabbatar cewa gefen ramin ya yi santsi kuma ba shi da burki don guje wa lalata gask ɗin rufewa.

Mataki na 2: Shigar da Gasken Seling

Zamar da gasket ɗin hatimin EPDM ɗin da aka haɗa zuwa sashin zaren, danna shi akan tushen dacewa. Idan ana buƙatar rufewa a bangarorin biyu na panel, sanya gasket ɗaya a kowane gefe.

Mataki na 3: Saka Ta hanyar Panel

Saka sashin zaren a cikin ramin daga gefe ɗaya na panel, tabbatar da cewa tushe mai dacewa yana tuntuɓar panel tare da gasket ɗin rufewa a tsakanin.

Mataki na 4: Danne Kulle Kwayar

Maƙale goro na kulle a kan sashin zaren daga kishiyar panel, kuma a hankali ƙara shi da maƙarƙashiya. Ƙarfin da aka ba da shawarar: 5-8 N·m don kayan tagulla da 8-12 N·m don bakin karfe. Ajiye jikin da ya dace a tsaye yayin dannewa.

Mataki 5: Haɗa Hose

Zaɓi takamaiman inda diamita na waje ya fi 0.5-1 mm girma fiye da diamita na ciki. Saka bututun a tsaye akan ƙarshen da aka yi masa shinge har sai ya kai tushe. Don aikace-aikacen matsi mai ƙarfi, yi amfani da madaidaicin bututun bakin karfe kuma ɗaure shi tsakanin barbs na biyu da na uku.

Mataki na 6: Gwajin Mutuncin Hatimi

Yi gwajin matsa lamba a tsaye a sau 1.5 na matsin aiki. Idan babu yabo na mintuna uku, shigarwa ya cancanci.
